Quantitative Analysis with Program FUD 7010E

The quantitative evaluation is done same as in the pressure measuring film with has a certain EPSON scanner and the analysis program of Fuji. The evaluations are possible for all lighting types mentioned below. The display is in false or true colours. The following are the system requirements:

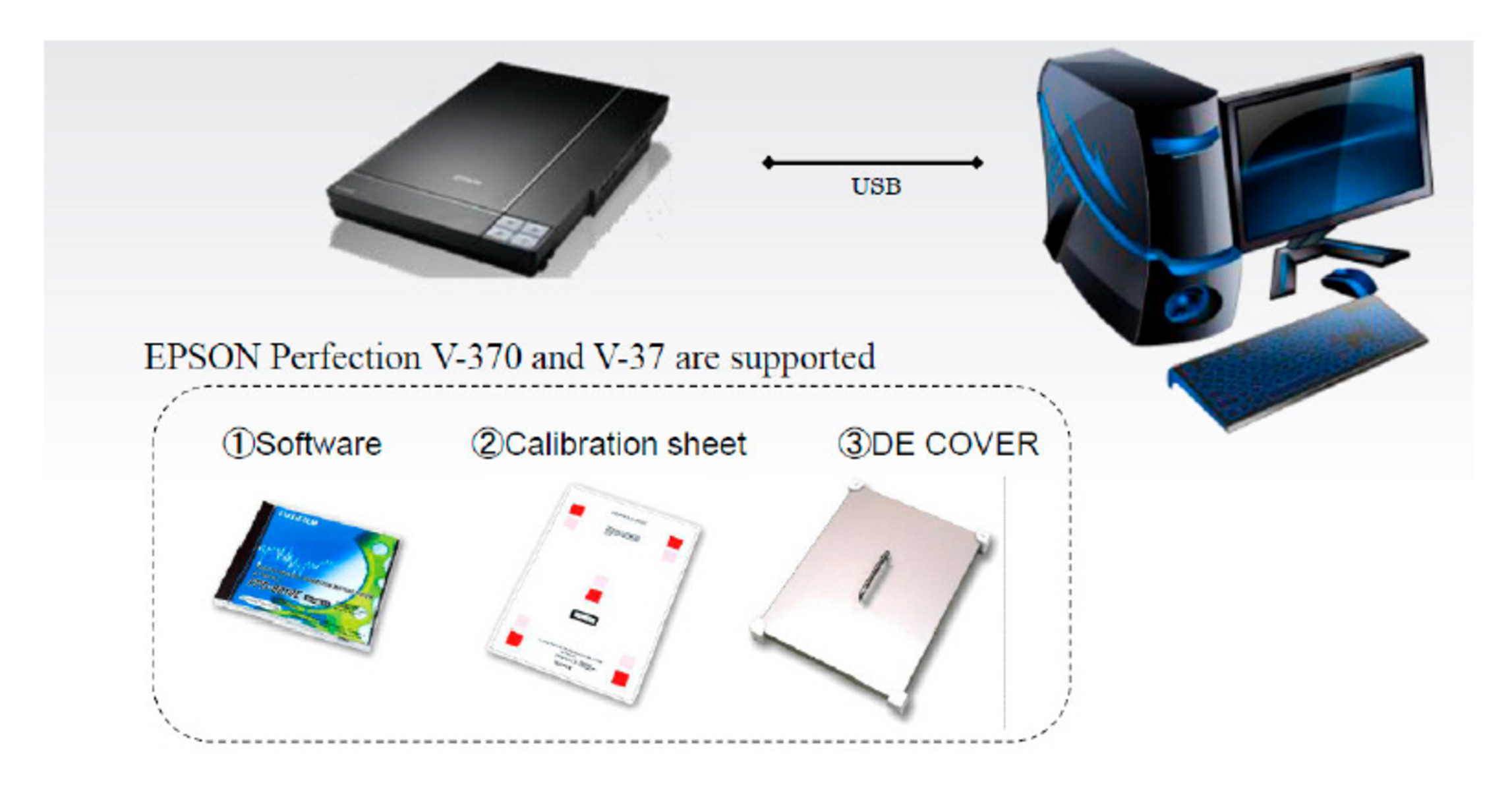

Fuji Analysis System FUD-7010E
Package Contents: Software, Scanner trailer, calibration sheet
Scanner: Epson V37 and Epson Perfection V-370
Resolution: 0.125 mm
PC: 2 GHz, 2 GB
Operating System: MS Windows 7 32/64 bit
Screen: 1024 x 768 pixels


Measurement Ranges and Choice of Film Size

The new measurement film UVSCALE covers amount of UV light from 4 – 100.000 mJ/cm² in a wavelength range of 200 to 420 nm. For the different amount of UV light, three different UV light measurement films are available.

All UV light measurement films are supplied in reels of a width of 270 mm. For initial testing purposes, we also offer small quantities of 1 m length. Alternatively, you can obtain a free test sample of 80 x 80 mm from us.
