Dicken- und Schichtdickenprüfung

In diesem Kapitel bieten wir von Hand- bis zu Laborsysteme alles an, was man zu Dickenmessung benötigt. Unsere Handgeräte Cpad X300 und X400 zur Schichtdickenmessung arbeiten mit Ultraschall. So können leicht z.B. die Lackschichtdicke oder auch Galvanisierungsschichten bestimmt werden. Die handlichen Dickenmessgeräte Upad T300, T400 und T410 messen auf einfache Weise Materialstärken auch bei gleichzeitigen Schichtdicken bis zu 25 mm. Alle Geräte sind selbstkalibrierend und speichern die Messdaten auf einem USB-Stick.

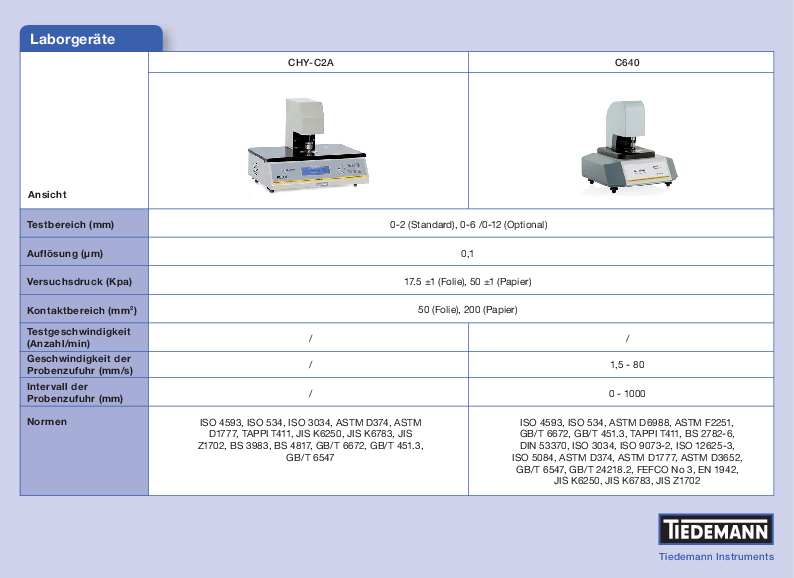

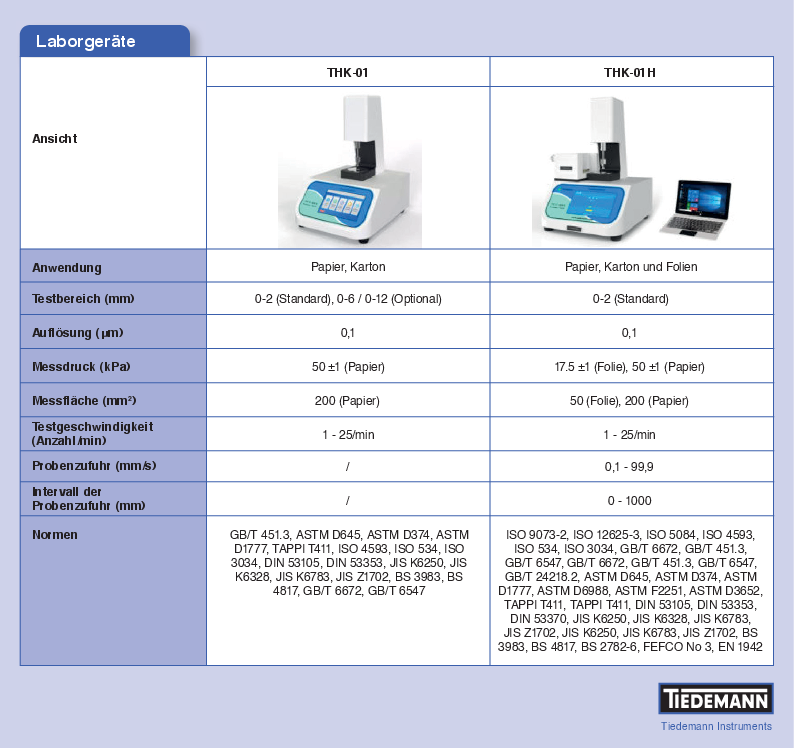

Die Dicken-Prüfgeräte C640 und CHY-C2A sind für den Laborbetrieb ausgelegt und basieren auf dem Kontaktierungsverfahren, aus welchem präzise und international genormte Testdaten resultieren. Die Geräte sind mit einem Computer-Kontrollsystem ausgestattet und benötigen lediglich den Anschluss von Ausgabegeräten.

Verpackungsmaterialien wie Plastikfolien, Membrane, Papier, Siliziumwafer, Metallbleche, Stoffe und Dämmstoffe können bis zu 12mm Dicke gemessen werden. Für die unterschiedlichen Materialien gibt es angepasste Druckfüße. Mit dem Modell C640 können sowohl Papier als auch Folien gemessen werden.

Alle Geräte ermitteln sowohl die Maximal- und Minimal-, als auch Durchschnittswerte und Standardabweichungen. Die Modelle C640 und CHY-C2A können manuell oder automatisch arbeiten.

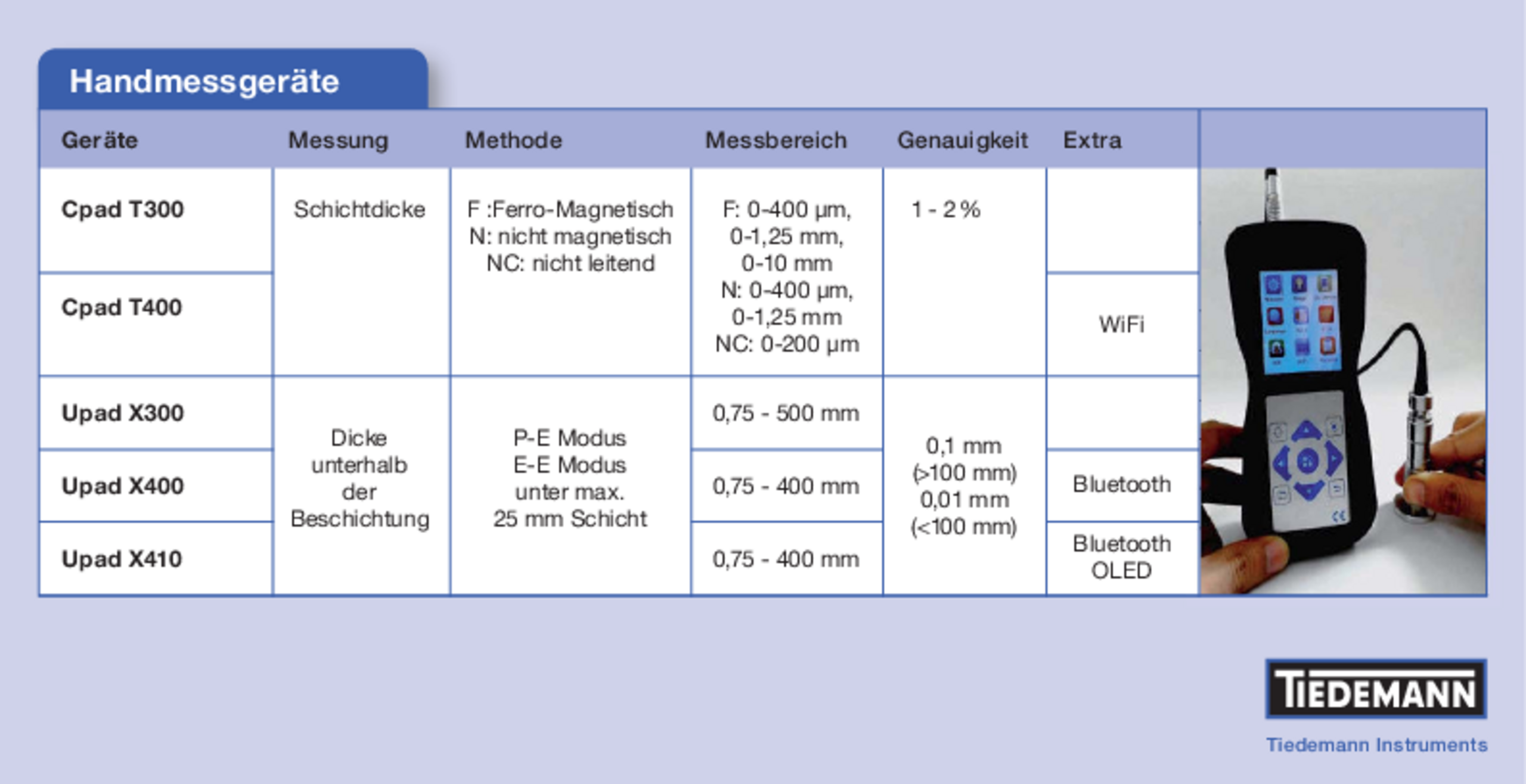

Schichtdickenmessgerät Cpad T300

Cpad T300

is designed for measuring the thickness of coating. The feature for this meter is fast, non-destructive and accurate.

Cpad Coating Thickness Gauge is applied in many areas, such as electroplating industry, corrosion protection, aerospace industry, automotive car industry, ship building industry, light industry and inspection etc.

Cpad could meet your diffrent demands by changing diffrent probes. There are two measuring methods could be chosen, magnetic permeability method and eddy current method.

F type probe with magnetic method can measure the magnetic metal (such as steel, iron, alloy steel and hard magnetic and non-magnetic) thickness of coating layer (such as zinc, aluminum, chromium, copper, rubber, paint etc.)

N probe can be measured by the eddy current method, the non ferromagnetic metal (such as copper, aluminum, zinc, tin and other) non conductive cover layer thickness and austenitic stainless steel (such as plastic, rubber, paint, anodizing etc.)


FEATURES:

  • High accuracy (1%+1)
  • Split design, strong applicability, measured value stability. Short response time, fast measurement speed.
  • 7 kinds of sensors (F400, F1, F1/90°, F10, N400, N1, CN02) are available to meet customer needs, a variety of measurement

Brochure Coating Thickness Gauge Cpad T300 [PDF]

Schichtdickenmessgerät Cpad T400

Cpad T400

The Portable coating thickness gauge is designed for measuring the thickness of coating. The feature for this meter is fast, non-destructive and accurate.

Cpad Coating Thickness Gauge is applied in many areas, such as electroplating industry, corrosion protection, aerospace industry, automotive car industry, ship building industry , light industry and inspection, etc.

Cpad could meet your different demands by changing different probes. There are two measuring methods could be chosen, magnetic permeability method and eddy current method. The Bluetooth function reads and transmits data more clearly and conveniently. LCD display screen, reading data is more intuitive and clear

F type probe with magnetic method, can measure the magnetic metal (such as steel, iron, alloy steel and hard magnetic and nonmagnetic) thickness of coating layer (such as zinc,aluminum, chromium, copper, rubber, paint etc.)

N probe can be measured by the eddy current method, the non ferromagnetic metal (such as copper, aluminum, zinc, tin and other) non conductive cover layer thickness and austenitic stainless steel (such as: plastic, rubber, paint, anodizing etc.).


FEATURES:

  • High accuracy (1%+1)
  • WIFI function
  • Split design, strong applicability, measured value stability. Short response time, fast measurement speed.
  • 7 kinds of sensors (F400, F1, F1/90 °, F10, N400, N1, CN02) are available to meet customer needs, a variety of measurement

Brochure Coating Thickness Gauge Cpad T400 [PDF]

Ultraschall-Dickenmessgerät Upad X300

Upad X300

FEATURES:
1. Echo to Echo mode
2.USB connection, convenient to read/save data via U disk
3.Massive Data Memory-100,000 data sets
4.Accuracy : 0.1/0.01mm or 0.01/0.001 inch
5.Probe Connection/Coupling Indicator
6.Extra-long standby time: 200 hours



Brochure Ultrasonic Thickness Gauge Upad X300 [PDF]

Ultraschall-Dickenmessgerät Upad X400

Upad X400: High Performance, Low Price

Upad X 400 Ultrasonic Thickness Gauge will be the best choice for accomplishing measurement. It fits many kinds of metal, such as steel, cast steel, aluminum, plastic, china glass, glass fiber and any other good conductors of ultrasonic.

The Bluetooth function reads and transmits data more clearly and conveniently. LCD display screen, reading data is more intuitive and clear.

Advanced Auto Probe Zeroing Calibration and Echo-Echo mode are applied on Upad X 400. Taking more accurate measuring result and higher production rate to you.

Upad X 400 is creative, it will supply a superior experience for users.



FEATURES:
1. Inco Style Menu
2. Showing different data modes
3. Stroll Bars Indicates Function
4. Free to change : Huge front and normal
5. USB for Storage, Plug and Play. Covenient to read thickness values
6. Massive Data Memory-100,000 data sets:
1000 files could be saved , every file could memory
1000 data sets6.Extra-long standby time: 200 hours


Brochure Ultrasonic Thickness Gauge Upad X400 [PDF]

Ultraschall-Dickenmessgerät Upad X410

Upad X410: High Performance, Low Price

Upad X 410 Ultrasonic Thickness Gauge will be the best choice for accomplishing measurement. It fits many kinds of metal, such as steel, cast steel, aluminum, plastic, china glass, glass fiber and any other good conductors of ultrasonic.

The Bluetooth function reads and transmits data more clearly and conveniently. OLED display screen, reading data is more intuitive and clear.

Advanced Auto Probe Zeroing Calibration and Echo-Echo mode are applied on Upad X 410. Taking more accurate measuring result and higher production rate to you.

Upad X 400 is creative, it will supply a superior experience for users.



FEATURES:
1. Inco Style Menu
2. Showing different data modes
3. Stroll Bars Indicates Function
4. Free to change: Huge front and normal
5. USB for Storage, Plug and Play. Covenient to read thickness values
6. Massive Data Memory-100,000 data sets:
1000 files could be saved, every file could memory
1000 data sets


Brochure Ultrasonic Thickness Gauge Upad X410 [PDF]

Fehler-Analysegerät UFD-PAD

UFD-PAD High Performance

We pursue the degree of portability in industrial flaw detection and make it simple. The team works hard day and night to develop new flat-panel flaw detector to make flaw detection more simple and convenient and meet the increasingly updated needs of modern flaw detection.



FEATURES:
• Dust-proof, water-proof and shock-proof, industrial-grade three-proof, suitable for harsh site
environment
• Intelligent flat panel ultrasonic flaw detector ufd-pad
• Square wave pulse excitation, optimized electro-acoustic matching is more suitable for ultra-thick/ultra-thin workpiece detection
• Ultra-thin intelligent tablet host wiht high sensitivity and touch high-definition screen
• Wi-fi wireless Internet of things property, power cloud detection
• Integrated XY position encoder, B/C scan detection system application (optional)
• A variety of scanners can be widely used in pipes, plates, welding seams, etc. (optional)
• Integrated, portable, suitable for steel structure field testing.
• Large screen display, intuitive and clear data.
• Suitable for connecting various scanning devices (it can test the inner wall of pipes etc.)


APPLICATION FIELD
• Pressure vessels, petrochemical, aerospace, welding, railways, steel mills, nuclear industry, aircraft, manufacturers, automobile production


GENERAL DESCRIPTIONS
• Square Wave Excitation and Narrow Band Filtering
• B/C, 5 DAC curves, in accordance with JIS, APS standards
• Practical DGS


Brochure Ultrasonic Flaw Detector UFD-PAD [PDF]

Schallgeschwindigkeitsmessgerät Upad VX

Upad VX Series: Cast iron special ball rate detection

FEATURE:
• Non-destructive measurement of ball
Relations with the ball using ultrasound rates, injury-free ball measurements; through the accumulation of a large number of experimental data, optimize ball rate algorithm to improve measurement accuracy.
• Through the coating thickness measurement
Powerful penetrating coating thickness measurement function allows you to remove the tedious grinding hard preparatory work, just a little surface treatment coating thickness measurement can be achieved easily.
• Without standard test block, the probe zero automatic calibration
Advanced real-time automatic calibration technology probe zero, tracking the world's latest technology trends. Relieve you manually calibrate the probe zero troubles, but to solve the probe measurement errors caused by zero drift, ensuring accurate measurement value, get rid of dependence on standard test blocks.
• U disk storage, plug and play
USB interface can insert U disk, no drive, plug and play, to achieve the thickness of the report.
• 100,000 measured values of large capacity data storage
• Statistics

Online statistics measurement process: maximum, minimum, standard deviation; Data Statistics: Maximum / minimum value, the mean, standard deviation.
• Probe connection status indicator / coupling state judge
Connection with a probe status indicator; prompt signal coupling strength; measured value display solid / hollow change, coupled visual indication whether the normal measurement.


FUNCTION:
• Thickness value measurement accuracy: 0.1 / 0.001 mm resolution
Precision measurement circuit to ensure that the entire measurement range are 0.1 / 0.01 mm or 0.01 / 0.001 inch resolution.
• Long Standby: 200 hours, to get rid of the frequency change the battery trouble


OPERATION:
• Icon-based menu structure.
• Scroll bar indicator.
• Large font display / conventional font display freely switch.




Download Brochure Ultra Velocity Tester Upad VX Series (PDF)

Härte-Prüfgeräte Lpad H100/H110/H120

Lpad: Smart and Portable

The H series of Lpad are the portable hardness testing instruments, which integrated the smartest NDT technology and the smallest dimension. The Lpad hardness tester is a revolutionary product that can test most of the metal objects. With the pen type design and innovative D/DL impacting probes, the Lpad H series products provide convenient and reliable experience of testing. With its small size, impressive design, competitive price, convenient using experience, the Lpad hardness tester can wildly be used in various situations.



FEATURES:
• Intelligent operation
Easy operation with several buttons, magnitude and Rockwell values displayed.
• Industrial bright OLED display
Good performance of OLED display, even in the sunshine.
• Accurate measurement value
High accuracy shown value error ± 0.5% (HLD=800), showing the value repeatability of 0.8
• Supports a variety of hardness standards
HL, HV, HRA, HRC, HRB, HB, HV, HS
• Large capacity of data storage
Mass storage hitherto unknown, leading the technology trend. The retention of data to measure the hardness of 300 groups.
• Support "forged steel (Steel)" materials
Hardness values can be preset, limit, beyond the range of automatic alarm, convenient batch testing needs.
• Working Hours: 10 hours
Note: the above features are related to type of machine, please refer to the following data.1000 data sets.



Download Brochure Pen Type Leeb Hardness Tester Lpad H100/H110/H120 [PDF]

Härte-Prüfgerät Lpad H210

Lpad H210: Fully functional superior performance

Lpad H210 Portable Hardness Tester based Leeb hardness measuring principle, can quickly and easily measure a variety of metal materials, hardness measurement values are displayed simultaneously, you can freely switch between different hardness standard, can be pre-set tolerance range, out of range automatic alarm. Relying on stable, low-power IC integrated circuits, full Chinese display, simple menu-driven operation and powerful. Embedded high-capacity memory chips, but also external U disk storage. 200 hours of standby time. Particularly suitable for field work and field operations.



FUNCTION:
• Leeb hardness measurement
Based Leeb hardness measuring principle, can detect a variety of metal materials.
• Supports a variety of standard hardness
Real-time display and conversion: Brinell HB, Rockwell HRC, Vickers HV, Shaw HS, and three kinds of intensity values.
• U disk storage, plug and play
Can be inserted U disk, no drive, plug and play, you can easily and quickly out of the report.
• Large capacity data storage
Unprecedented mass storage, leading technology trends. Hardness measurements can save 600 groups of data, each data includes average, impact direction, number, material, hardness, and other information.
• Support "forged steel (Steel)" material
When using the D / DC type impact test "forged" sample when HB values can be read directly, without manual look-up table.
• Threshold alarm
Hardness value can be pre-set upper and lower limits, out of range alarm, convenient batch test requires users.


FEATURES:
• Accurately measured value

Precision measurement circuit to ensure Indication error ± 0.5% (HLD = 800), showing the value of repeatability 0.8%.
• Long Standby: 200 hours, to get rid of frequent replace the battery trouble.


OPERATION:
• Variety of data displayed simultaneously

The interface can be displayed simultaneously refined three measurement data, while the data group number, data number, the lower threshold value at a glance.
• Icon-based menu structure
Chinese display, menu-driven operation, simple operation, easy.
• Scroll bar indicator
• Anti-vibration, shock and electromagnetic interference.
• High contrast 128x64 dot matrix LCD, beautifully printed text, numbers and symbols; high brightness EL backlight for easy use in dimly lit environments.


Download Brochure Leeb Hardness Tester Lpad H210 (PDF)
